Why is Mostly Solid Bare Conductor Used for Grounding Instead of Insulated Wire?
A ground wire, also called a grounding conductor or earthing wire, is a key part of any electrical safety system. It connects the transformer or main panel (also known as the distribution board) to the ground rod or earthing plate through a metallic lead buried in the earth. This wire is also linked to all exposed metallic parts of equipment that people might touch. Its main purpose is to protect against electric shock if a live (phase or line) wire accidentally makes contact with the metal body of a device. For example, if the outer metal case of a washing machine becomes energized, the grounding wire safely carries the fault current into the earth instead of through your body.
In a grounding or earthing system, the ground wire provides a low-resistance path for unwanted electrical current to safely flow into the ground. This safety feature protects both people and equipment from dangerous electrical faults such as short circuits or leakage currents. Without proper grounding, these fault currents could cause fires, damage devices, or create life-threatening shock hazards. A simple way to think of it is that the earth works like a giant safety net, catching any stray electricity before it can cause harm.

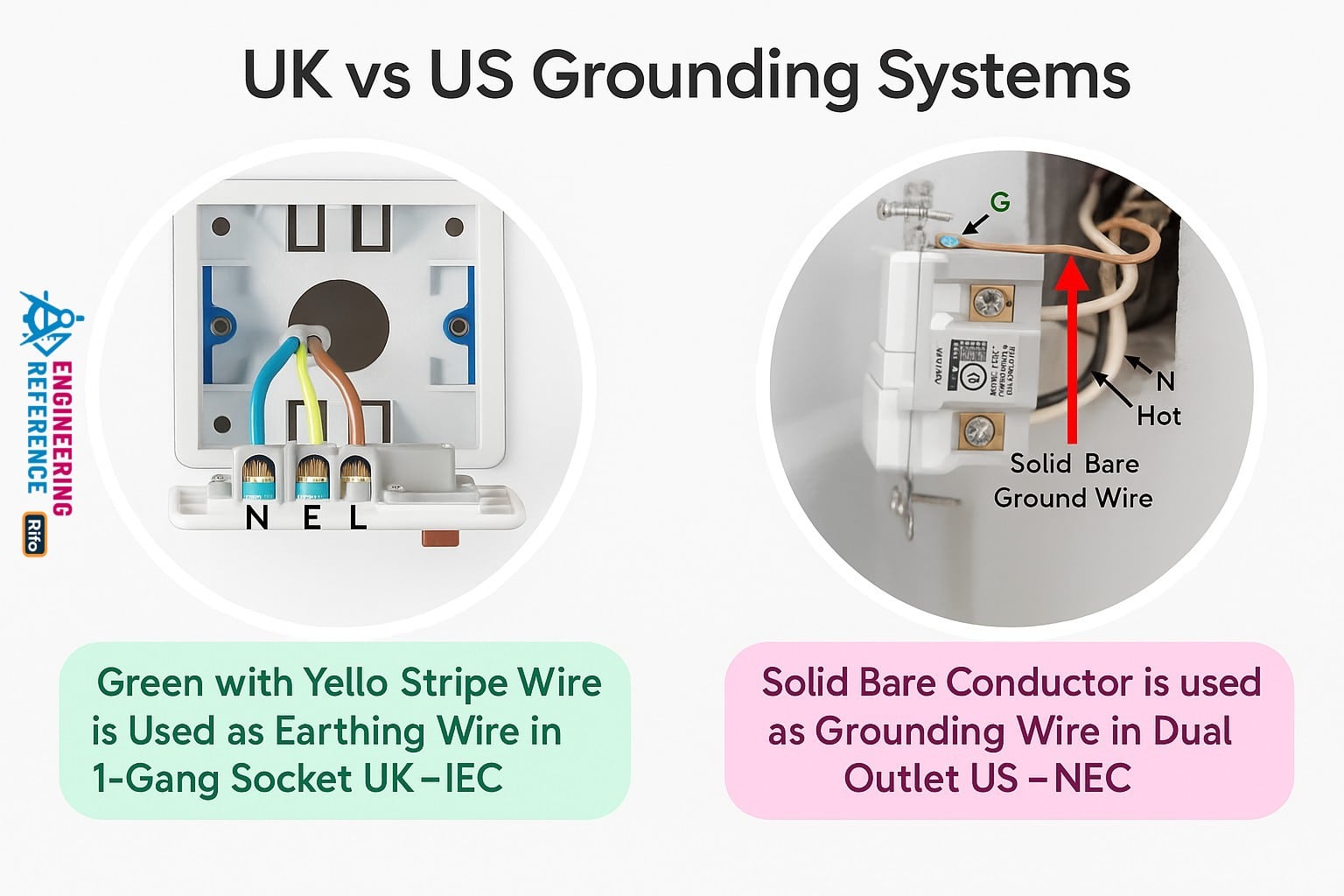

According to the National Electrical Code (NEC), a bare copper conductor is recommended as the grounding conductor. However, in some installations, an insulated wire may also be used if it follows the correct color code. The most common colors for insulated grounding wires are green or green with a yellow stripe, as widely accepted in the United States. In contrast, the International Electrotechnical Commission (IEC) uses light blue for the earth wire (it was black before 2004 in the UK). The bare copper type is often preferred because it has direct contact with the soil, improving conductivity and reducing resistance in the grounding path.
Good to Know: In the NEC, the grounding conductor is labeled as Ground Wire (G), while in the IEC, it is referred to as Protective Earth (PE).
Detailed explanation on : Why Does the USA Use 120V While Most of the World Uses 230V?
Why Use a Bare Grounding Wire Instead of an Insulated Wire?
The main reason a bare grounding wire (or solid bare conductor) is used instead of an insulated wire is cost-efficiency. While the price difference between the two may seem small in residential wiring, it becomes significant in industrial or large-scale electrical systems, where hundreds or thousands of meters of grounding wire are installed. In such cases, choosing a bare conductor helps reduce both material and installation costs without affecting safety or performance.
Grounding wires are often left bare for several practical and technical reasons:
1. Cost: Adding insulation to a grounding conductor provides little benefit because the wire is not meant to carry current under normal operation. Insulating it would only increase the cost of manufacturing and installation. Since the ground wire’s job is to carry current only during faults, leaving it bare is a more economical choice.
2. Leakage Current Capacity: A bare conductor in contact with the soil allows better dissipation of leakage current and increases the sphere of influence of the grounding system. This means the current can spread more effectively into the earth, improving the overall grounding efficiency. It’s similar to how a wide metal plate spreads heat better than one covered in plastic.
3. Alternative Grounding Methods: In some wiring systems, a separate ground wire isn’t even needed. The metal conduit, cable armor, or raceway itself serves as the grounding path. However, in other systems, especially those with nonmetallic conduits, a separate bare or insulated grounding wire must still be installed to ensure safety.
4. Heat Dissipation: During a fault or overload, grounding wires may carry large currents for a short time. Since bare wires release heat more easily, they are less likely to overheat or melt. An insulated wire could trap heat and increase the risk of fire or insulation damage under the same conditions.
5. Easy Identification: Because bare wires are clearly visible and often color-coded in installations, they are easy to recognize during maintenance or repairs. Electricians can instantly distinguish them from phase or neutral conductors, which helps reduce errors and improves safety when working on electrical systems.
Recommended resource : When and Why Did the U.S. Transition from 110V to 120V Supply?
It’s worth noting that in some cases, ground conductors may still be enclosed in conduits or covered with insulation if there’s a risk of physical damage or corrosion. For instance, in metal-clad cables, both insulated and bare grounding wires may be used together depending on the system design and environmental conditions.
